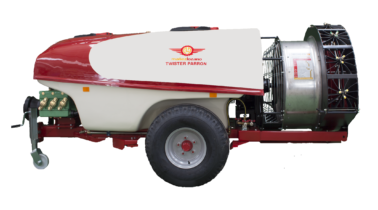

Twister FR Parrón Inverter trailed sprayer
HP requirement: from 55 HP.
Available width: from 132 to 157 cm.
Tank Capacity: 1000, 1500 y 2000 litres
Twister Parrón Inverter trailed sprayer
The inverted air intake in the TW FR Parrón Inverter decreases the absorption of leaves from the ground. It is perfect for crops such as table grapes or kiwi.
- Double structural tube frame
- Telescopic drawbar
- Side step for reaching tank filler lid
- Jockey wheel for parking sprayer
- Fiberglass tank with level indicator and internal baff les tank
- Fiberglass tank for hand wash and system rinse
- Multiple filtering system
- Products mixer
- Cleaning robot inside the main tank
- Hydraulic stirrer
- High pressure piston pump with reducer shaft
- Electric ON/OFF controls
- Internal transmission category 4 SAE G7
- External transmission and connection to CV tractor category 4 SAE G7
Technical specifications
- Stainless steel air cowling
- Steel propeller with 18 blades to ensure homogeneous air distribution of air volume on both sides
- Triple air ducting system, which prevents the collision between fastest air produced in the upper part of propeller and slower generated in central part. This system increases the eff iciency
- Mañez Lozano gearbox with two speeds and a neutral, able to transmit strong power
- Alluminium iron centrifugal clutch that allows a soft and progressive start and stop
- Duraluminium propeller hub with steel sleeve to prevent wear due to friction with the clutch
- 8 adjustable helical pitch blades that regulate energy/power absorption, reducing noise level and fuel consumption
- Pale made of nylon and fi berglass. Lightweight, resistant, rigid and unalterable to corrosion
- Triple anti-drop nozzle holders with turbulence nozzles
- Twister diff user generate spiral turbulet air fl ow, allowing to move the leaves and preventing shielding eff ect and getting best penetration inside the tree
Air system characteristics
PUMP SUPER REDUCTORA ML-A1
Pump specially designed for atomizers. This pump is mounted with a reducer and a through shaft : the through shaft allows us to directly transmit the revolutions of the tractor joint shaft to the air system, and the reducer decreases the revolutions of the pump crankshaft , lowering the power absorption and, therefore, both the fuel consumption and wear of the pump.
PUMP SUPER DIRECTA ML-A
Pump specially designed for atomizers.
PUMP ESPECIAL DIRECTA ML-D
Pump specially designed for atomizers.
ELECTRIC CONTROL ON-OFF
Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.
TRONIC VOLUMETRIC CONTROL
The Tronic volumetric control is able to apply the l/Ha required for each treatment with respect to the forward speed.
3.2 “ (320X240) TFT colour screen which allows you to view all functions simultaneously
Identifi cation of electrical faults with on-screen alarms
Agenda that allows us to work with 50 diff erent fi elds and 15 diff erent treatments.
SISTROMÁTIC CONTROL
The Sistromatic control includes ultrasonic sensors for detecting trees
Real-time plant and tree counters
Control of input and output delays
3.2 “ (320×240) TFT colour screen with backlit keyboard
Identifi cation of electrical faults with on-screen alarms
OPTIONAL EQUIPMENT
Drawbar to tractor coupling
Drawbar to the tractor arms
Anti-leaf
flap
Rear
case
Hydraulic
brakes
Wheels
340/55-16”
Light
installation
Electrical valve pressure regulation kit
Tronic Volumetric control kit
Sistromatic control kit without flowmeter
Anti-leaf
grate
