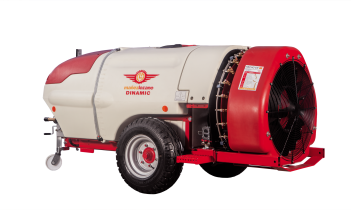

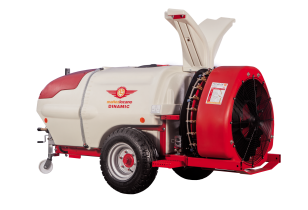

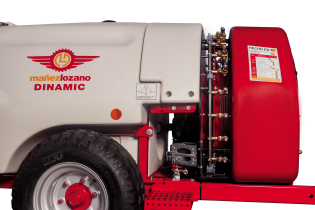

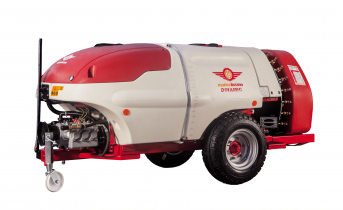

Dinamic FR trailed sprayer

HP requirement: from 55 Cv.

Available width: from 116 to 179 cm.

Tank Capacity: 800, 1000, 1500, 2000 and 3000 litres

Dinamic FR trailed sprayer Serie

It is the traditional trailed sprayer, with a great flexibility of use.

  • Cold rerolled structural tube frame
  • Telescopic steering rod
  • Stirrup for easy access to the tank fi ller neck
  • Jockey wheel support
  • High quality polyethylene main tank with uniform thickness and front and side level indicator
  • Hand-washing and circuit-washing tank
  • Multiple fi ltering system
  • Product Mixer
  • Cleaning robot inside the main tank
  • Hydraulic Agitator
  • High pressure piston pump
  • M-170 manual control with pressure regulator and pressure gauge
  • Internal and exterior transmission category 4 SAE G7

Technical specifications

  • Polyethylene fan housing
  • Stainless Steel defl ector with 18 blades to ensure even
    distribution to both sides of the air volume
  • Two-channel air duct system which increases production,
    preventing rapid air produced at the top of the rotor from
    colliding with the slow air generated in the central part.
  • Propeller with hard aluminium core and steel jacket to
    prevent wear due to friction with the clutch
  • Eight adjustable blades with curved design that reduce
    power absorption, noise and fuel consumption
  • Aluminium clutch linings that enable smooth and
    progressive start up
  • Gearbox with two speeds and neutral
  • Stainless steel supply pipes
  • Double anti-drip nozzle holders with ceramic spray tip
    nozzles

Dinamic Air system characteristics

PUMP SUPER REDUCTORA ML-A1

Pump specially designed for atomizers. This pump is mounted with a reducer and a through shaft : the through shaft allows us to directly transmit the revolutions of the tractor joint shaft to the air system, and the reducer decreases the revolutions of the pump crankshaft , lowering the power absorption and, therefore, both the fuel consumption and wear of the pump.

PUMP SUPER DIRECTA ML-A

Pump specially designed for atomizers.

PUMP ESPECIAL DIRECTA ML-D

Pump specially designed for atomizers.

mando-M170-2

MANUAL CONTROL M-170

Manual control with a selector lever for selecting the sections you wish to apply treatment. You can also regulate the working pressure precisely and reliably by turning the handle even while operating.

8138730 mando on off ROJO recortado

ELECTRIC CONTROL ON-OFF

Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.

sistromatic

SISTROMÁTIC CONTROL

The Sistromatic control includes ultrasonic sensors for detecting trees
Real-time plant and tree counters
Control of input and output delays
3.2 “ (320×240) TFT colour screen with backlit keyboard
Identifi cation of electrical faults with on-screen alarms
