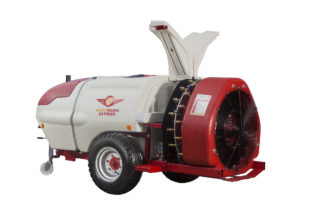

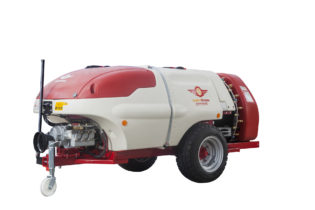

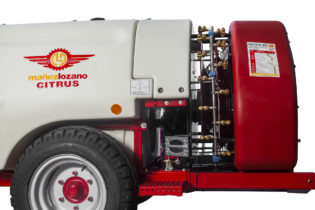

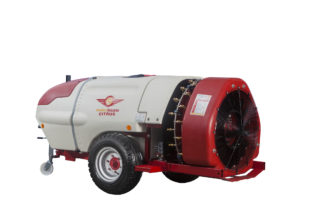

Citrus FR trailed spayer
HP requirement: from 55 HP.
Available width: from 132 to 179 cm.
Tank Capacity: 1000, 1500, 2000 y 3000 litres
Citrus FR trailed sprayer Serie
Trailed sprayer with double row of nozzles and triple air channel, for crops with important cup density, such as citrus.
- Cold rerolled structural tube frame
- Telescopic steering rod
- Stirrup for easy access to the tank fi ller neck
- Jockey wheel support
- High quality polyethylene main tank with uniform thickness and front and side level indicator
- Hand-washing and circuit-washing tank
- Multiple fi ltering system
- Product Mixer
- Robot cleaning inside the main tank
- Hydraulic Agitator
- High pressure piston pump with reducer shaft
- Electric ON/OFF controls
- Internal transmission category 4 SAE G7
- External transmission and connection to CV tractor category 4 SAE G7
Technical specifications
![](https://twistersprayers.com/wp-content/uploads/2018/04/citrus-especificaciones-tecnicas.jpg)
- Polyethylene fan housing
- Stainless Steel defl ector with 18 blades to ensure even distribution to both sides of the air volume
- Three-channel air duct system which increases production, preventing rapid air produced at the top of the rotor from colliding with the slow air generated in the central part.
- Gearbox with two speeds and neutral
- Propeller with hard aluminium core and steel jacket to prevent wear due to friction with the clutch
- Eight adjustable blades with curved design that reduce power absorption and lowers the noise level and fuel consumption
- Aluminium clutch linings that enable smooth and progressive start up
- Stainless steel supply pipes
- Double anti-drip nozzle holders with ceramic spray tip nozzles
- Double row of nozzle holders for a more even distribution of the product
Citrus air system characteristics
![](https://twistersprayers.com/wp-content/uploads/2018/05/citrus-caract-grupo-aire.jpg)
![](https://twistersprayers.com/wp-content/uploads/2018/09/ml-a1-300x200.png)
PUMP SUPER REDUCTORA ML-A1
Pump specially designed for atomizers. This pump is mounted with a reducer and a through shaft : the through shaft allows us to directly transmit the revolutions of the tractor joint shaft to the air system, and the reducer decreases the revolutions of the pump crankshaft , lowering the power absorption and, therefore, both the fuel consumption and wear of the pump.
![](https://twistersprayers.com/wp-content/uploads/2018/09/ml-a-300x212.png)
PUMP SUPER DIRECTA ML-A
Pump specially designed for atomizers.
![](https://twistersprayers.com/wp-content/uploads/2018/09/ml-d-300x200.png)
PUMP ESPECIAL DIRECTA ML-D
Pump specially designed for atomizers.
![8138730 mando on off ROJO recortado 8138730 mando on off ROJO recortado](https://twistersprayers.com/wp-content/uploads/2018/04/8138730-mando-on-off-ROJO-recortado-100x200.png)
ELECTRIC CONTROL ON-OFF
Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.
![mando tronic 1 mando tronic 1](https://twistersprayers.com/wp-content/uploads/2018/04/mando-tronic-1-100x200.png)
TRONIC VOLUMETRIC CONTROL
The Tronic volumetric control is able to apply the l/Ha required for each treatment with respect to the forward speed.
3.2 “ (320X240) TFT colour screen which allows you to view all functions simultaneously
Identifi cation of electrical faults with on-screen alarms
Agenda that allows us to work with 50 diff erent fi elds and 15 diff erent treatments.
![sistromatic sistromatic](https://twistersprayers.com/wp-content/uploads/2018/04/sistromatic-100x200.png)
SISTROMÁTIC CONTROL
The Sistromatic control includes ultrasonic sensors for detecting trees
Real-time plant and tree counters
Control of input and output delays
3.2 “ (320×240) TFT colour screen with backlit keyboard
Identifi cation of electrical faults with on-screen alarms
OPTIONAL EQUIPMENT
Drawbar to tractor coupling
Drawbar to the tractor arms
Anti-leaf
flap
Rear
case
Hydraulic
brakes
Wheels
340/55-16”
Light
installation
Electrical valve pressure regulation kit
Tronic Volumetric control kit
Sistromatic control kit without flowmeter
Anti-leaf
grate
Flowmeter
