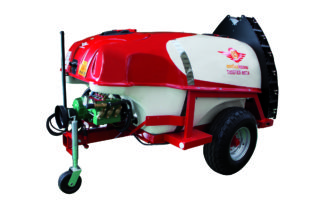

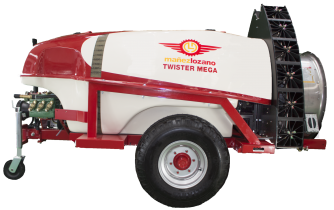

Mega S6 trailed sprayer
HP requirement: from 70 HP.
Available width: from 189 to 220 cm.
Tank Capacity: 2000, 2500, 3000 y 4000 litres
- Designed for large farms and difficult terrain
- Double structural tube frame
- Better stability on sloping or uneven terrain
- Additional lateral tank attachments
- Ultrasound system protector wings
- Recommended use on semi-standard tractors (wheel arch following the tractor)
- Double structural tube frame
- Telescopic drawbar
- Side step for reaching tank filler lid
- Jockey wheel for parking sprayer
- Fiberglass tank with level indicator and internal baffles tank
- Hand wash and sistem rinse tank
- Multiple filtering system
- Product mixer
- Cleaning robot inside the main tank
- Hydraulic stirrer
- Mañez Lozano high pressure piston pump with reduction shaft
- ON/OFF electric control unit
- Through tank pto class 4 SAE G7
- Tractor PTO category 4 SAE G7
Technical specifications
- Equipped with diff users that produce a spiral-shaped turbulent airflow that gives movement to the leaf mass. This system avoids the formation of leaf screens, and optimizes the penetration inside the tree.
- Stainless steel air coming with 18 blades to ensure homogeneous air volume distribution on both fan sides
- Triple air ducting system, which prevents the collision between fastest air produced in the upper part of propeller and slower generated in the central part. This system increases the efficiency
- Duraluminium propeller hub with steel sleeve to prevent wear due to friction with the clutch
- 8 adjustable helical pitch blades that regulate energy / power absorption, reducing noise level and fuel consumption.
- Pale made of nylon and fi berglass. Lightweight, resistant, rigid and unalterable to corrosion
- Stainless steel air cowling
- Mañez Lozano gearbox with two speeds and a neutral, able to transmit big power
- Alluminium iron clutch that makes a soft and progressive start
- Stainless steel pipes
Air system characteristics
PUMP SUPER REDUCTORA ML-A1
Pump specially designed for atomizers. This pump is mounted with a reducer and a through shaft : the through shaft allows us to directly transmit the revolutions of the tractor joint shaft to the air system, and the reducer decreases the revolutions of the pump crankshaft , lowering the power absorption and, therefore, both the fuel consumption and wear of the pump.
PUMP SUPER DIRECTA ML-A
Pump specially designed for atomizers.
ELECTRIC CONTROL ON-OFF
Control with double switch to increase or decrease pressure (optional) and two switches to activate or deactivate the left and right solenoid valves.
TRONIC VOLUMETRIC CONTROL
The Tronic volumetric control is able to apply the l/Ha required for each treatment with respect to the forward speed.
3.2 “ (320X240) TFT colour screen which allows you to view all functions simultaneously
Identifi cation of electrical faults with on-screen alarms
Agenda that allows us to work with 50 diff erent fi elds and 15 diff erent treatments.
SISTROMÁTIC CONTROL
The Sistromatic control includes ultrasonic sensors for detecting trees
Real-time plant and tree counters
Control of input and output delays
3.2 “ (320×240) TFT colour screen with backlit keyboard
Identifi cation of electrical faults with on-screen alarms
OPTIONAL EQUIPMENT
Drawbar to tractor coupling
Drawbar to the tractor arms
Anti-leaf
flap
Hydraulic
brakes
Light
installation
Parabolic
crossbow
Stainless steel
air conveyor
Wheels
340/55-16”
Anti-leaf
grate
Electrical valve pressure regulation kit
Tronic Volumetric control kit
Sistromatic control kit without flowmeter
Premixer
